LS-WL341-10X Dual Sensor 4MP HD 10x Optical Zoom Wireless PTZ CCTV Wifi Camera

LS VISION’s DC12V Three Lens Dual Sensor Humanoid Detection Vehicle Detection 4MP HD 10x Optical Zoom Wireless Wifi PTZ CCTV Camera connects with power supply.

Thus it can offer power to the camera all the time and you don’t need to worry about power shortage anymore.

You can install at any places that’re with electricity.

Weight 1.13 kg
Dimensions 24.5 × 20 × 18.2 cm


1. 4MP HD 10x zoom PTZ camera;

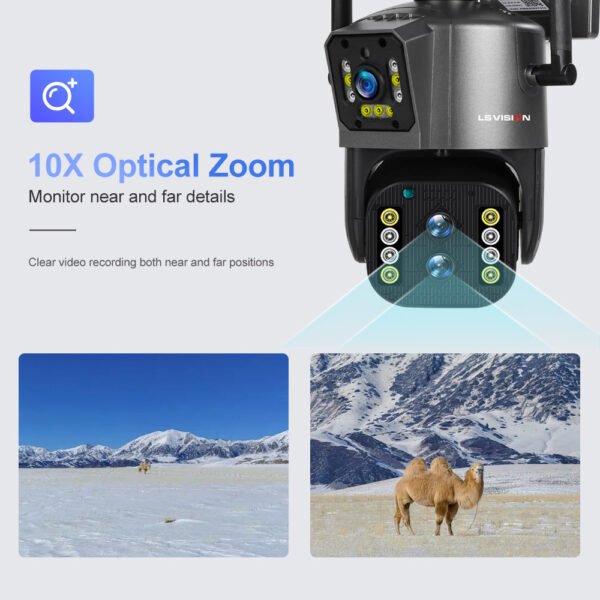

2. Three-lens dual-screen, ultra-wide-angle + 10x zoom to achieve clear monitoring from far and near;
3. Dual light source design, built-in infrared light + white light, night vision infrared and night vision full color can be set;
4. Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
5. 2.4G WIFI + RJ45 network port for Internet access;
6. Support TF storage and cloud storage (free one month cloud storage);
7. Two-way voice intercom, two-way video synchronous recording and playback
8. Humanoid detection/vehicle detection/pet detection/other detection (need to open cloud storage)
9. Automatic tracking/movement alarm, alarm output sound and light linkage;
10. AI intelligent algorithm to achieve video 3D positioning and continuous tracking of target alarms;
11. Support Android/IOS APP remote management (IPC360 Home).
12. power supply DC 12V


Dual lens, 10x zoom, audible alarm, humanoid tracking, two way voice intercom

360 monitoring, full color night vision, IP66 waterproof, mobile phone remote monitoring

Share video, SD card storage, 24 hours video recording


Smart PIR Motion Detection Alarm

* outdoor camera uses a highly sensitive PIR motion sensor to detect double the
control and reduce false alarms,
* Wake up quickly and steadily capture all human movements, greatly reduce false alarms caused by
rain and insects, etc.
* Enhanced protection of your property and sends timely and accurate alerts. Excellent choice for home

Motion Dection Alarm Notification
* When video camera detect motion, it would send motion detection notification to your mobile phone.
* The video surveillance can be activated by people.
* If set the Led on, when the CCTV camera detect motion, the floodlight (spot light) would be on.

Color Night Vision CCTV IP Camera
* See everything in detail in day & night.
* This security camera has 3 modes of night vision: Color, IR, Auto Night Vision.

Waterproof IP66 Solar Outdoor Camera
* The security outdoor camera is equipped with an IP66 rated weatherproof housing, designed to operate the PTZ CCTV camera even in extreme weather conditions.
* The surveillance camera shell is made of high quality plastic material, which is waterproof
* IP66 design shell can prevent dust and splash water in (make sure all cover is used in correct position)





Weight 1.13 kg
Dimensions 24.5 × 20 × 18.2 cm



  Model LS-WL340-10X
Camera Senser:  1/3 CMOS
Video mode: PAL/NTSC Auto
Scanning mode: Progressive scan
Lens: 2.8mm+6mm+16mmThree lens
Day/Night White light and infrared
Electronic shutter: (Auto,1/25~1/4000s)
White lamp: Auto
IR: 8pcs LED
Infrared distance: 30m
Wifi Wifi 2.4G Hz
Wireless standards 802.11b/g/n
Channel bandwidth 20m
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Compression Image compression  h. 264
Video bit rate 128Kbps-8Mbps;
Video Maximum image size 4MP+4MP
Solution Double 2560*1440@25fps
image adjustment Auto
Mirror image  horizontally,vertically
Scenario Indoor, outdoor
Digital zoom App implementation
Function Storage Support TFcard 128G
Interface protocols onvif
Support agreement TCP/IP,DHCP
AI alarm Motion detection, motion tracking
Wireless network Supports the wifi hotspot function
Interface Communication interface An RJ4510M/100M adaptive Ethernet port is used
Basic parameters Input DC 12V±10%
Power Maximum power consumption12W
Work environment -20℃~60℃,humidityLess than 95%(no water)
Size 245*200*182mm, 1.13kg


LS-WL341 – 10X Product Specifications
