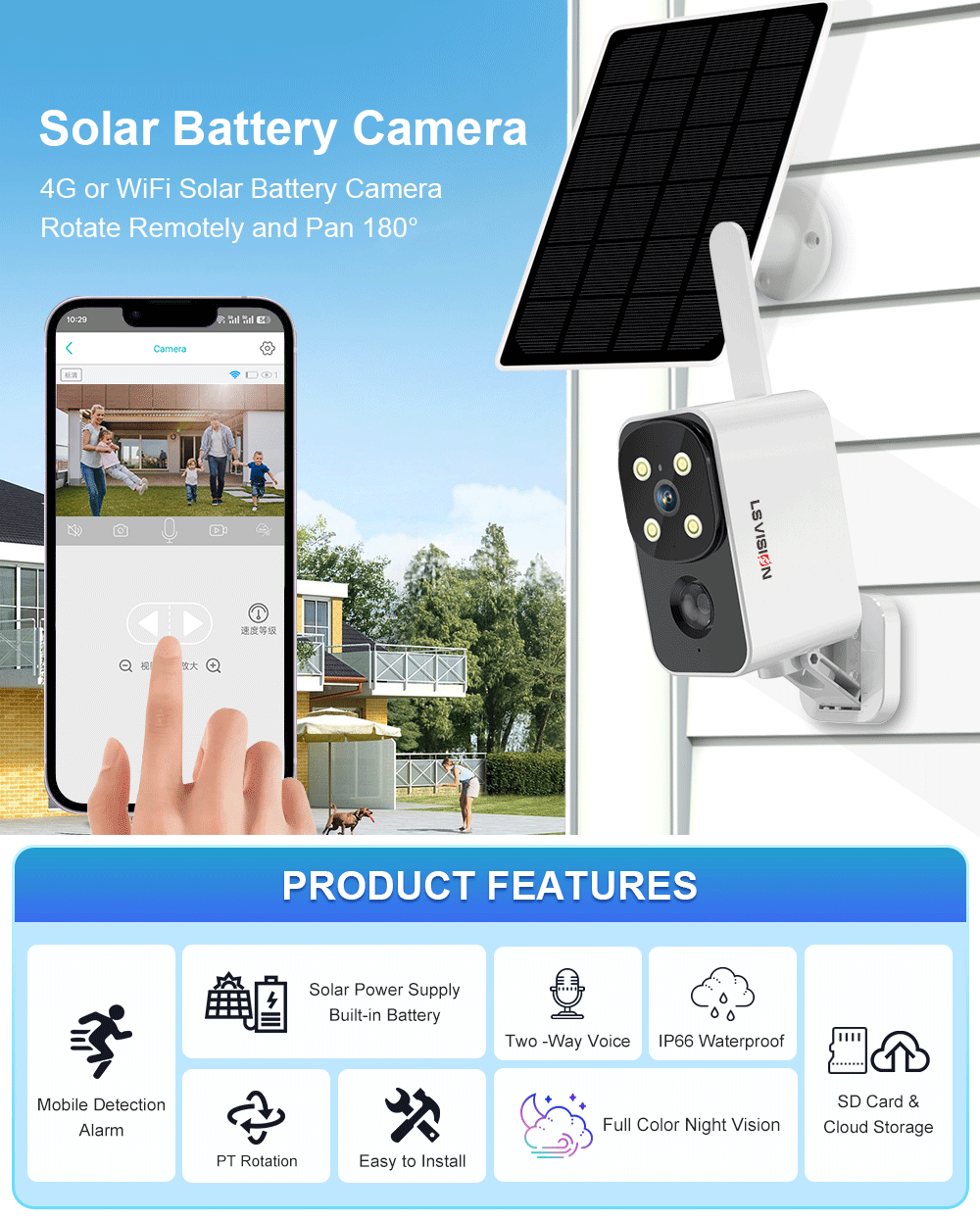

LS VISION LS-BC3-4G 3MP UBox Solar Home Smart PTZ Camera Battery Operated
LS VISION is a trusted provider of battery-operated security camera solutions.
Introducing the only smart wireless solar security camera with PTZ functionality.

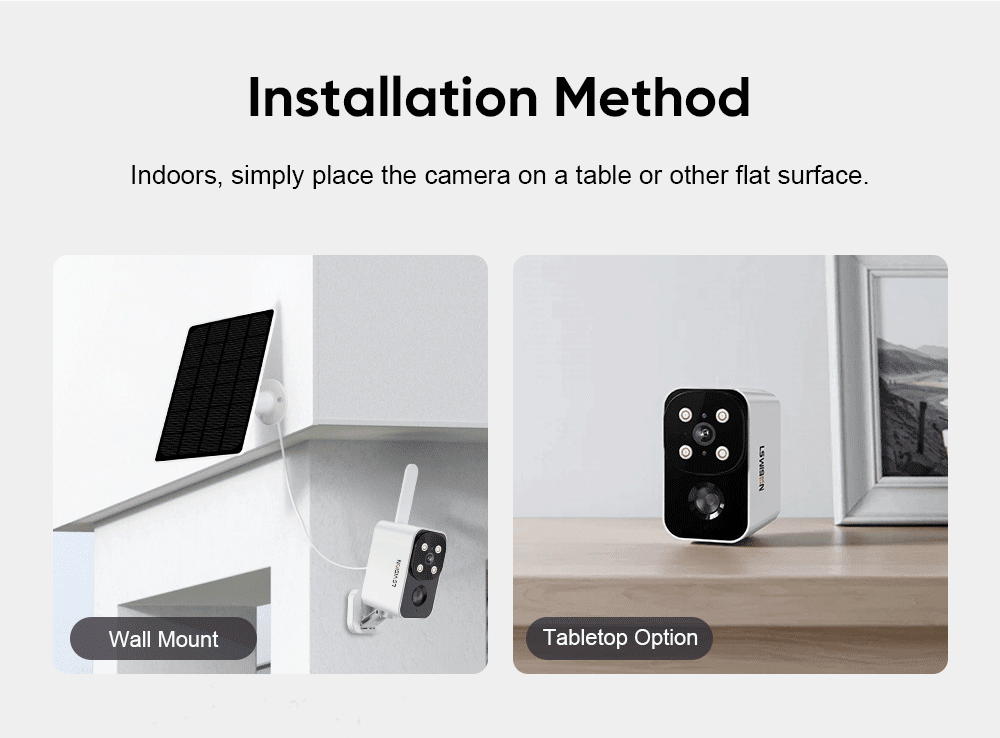

Compact, easy to install, and perfect for home use.
Customizable options available for dealers and e-commerce clients.
| Weight | 0.7 kg |
|---|---|
| Dimensions | 17.5 × 13.0 × 8.9 cm |
Key Features:
- 3MP 4G battery camera

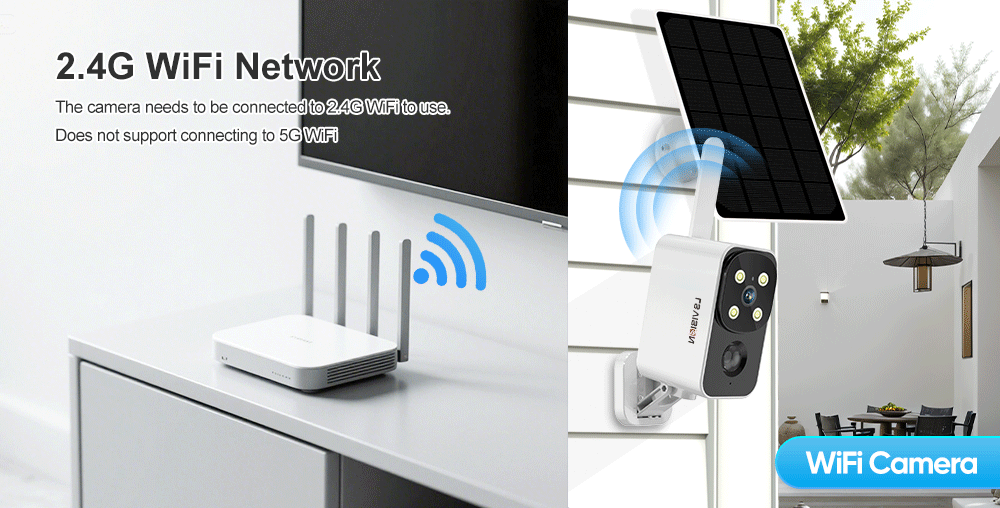

- Built-in 4G module, different modules in different countries/WIFI 2.4GHz , IEEE 802.11 b/g/n
- Pan&Tilt:Pan 180 degree electric rotation &Tilt 100 degree manual rotation

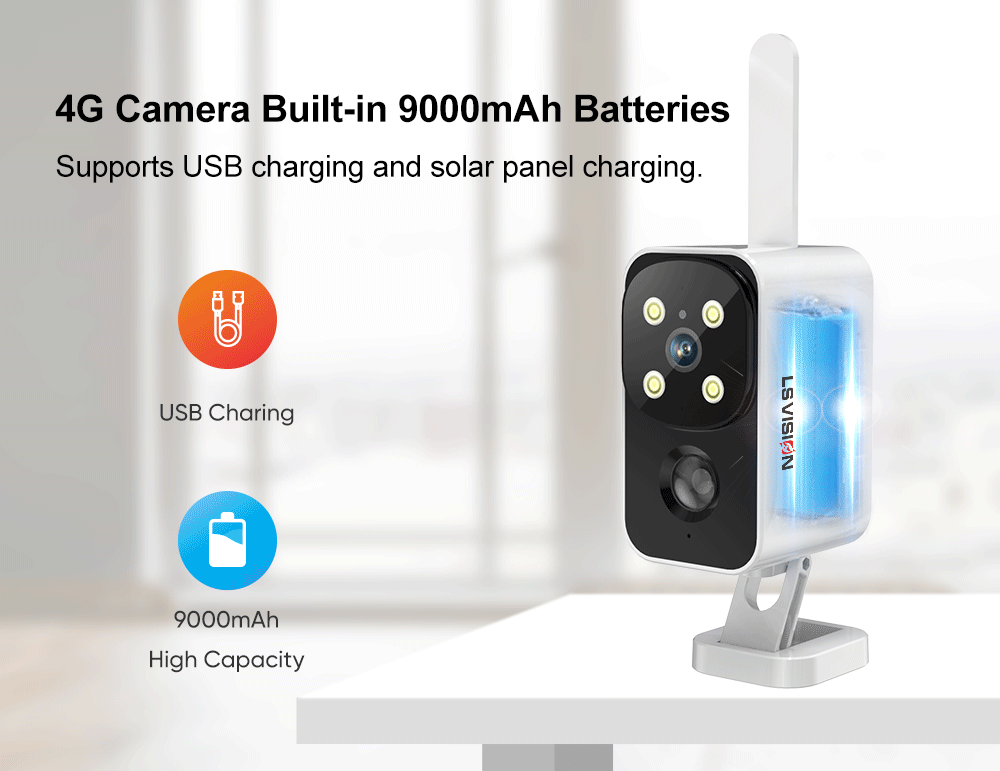

- 3.5 watt solar panel with 3m extension cord,built-in 9000mAh batteries
- Two-way voice intercom

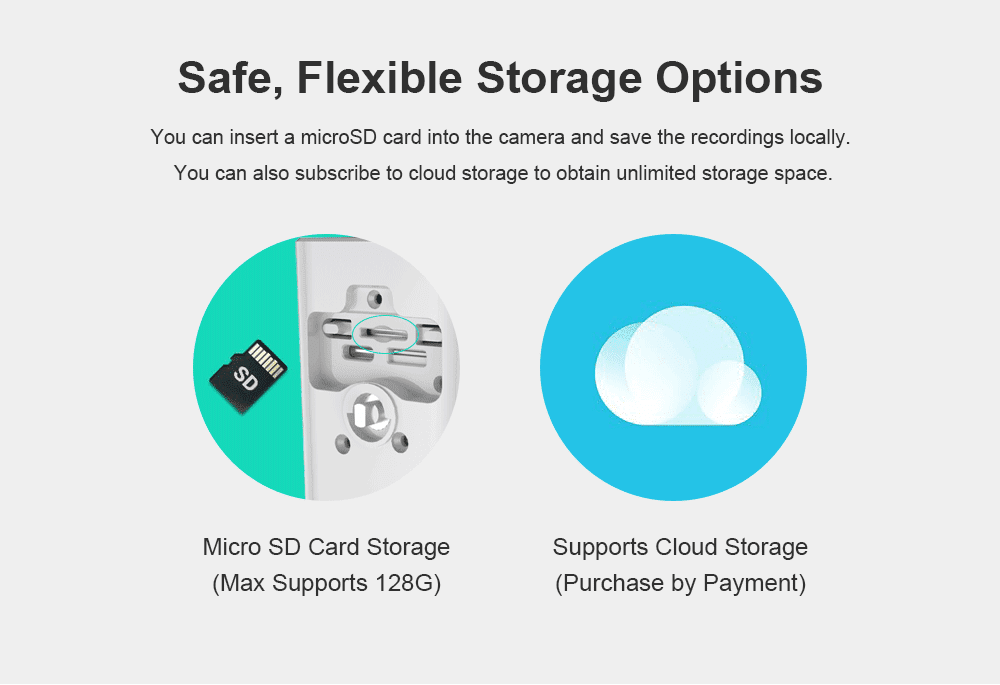

- Cloud storage and TF card storage maximum 256G（without TF card）,only supports 256GB TF card provided by LS VISION

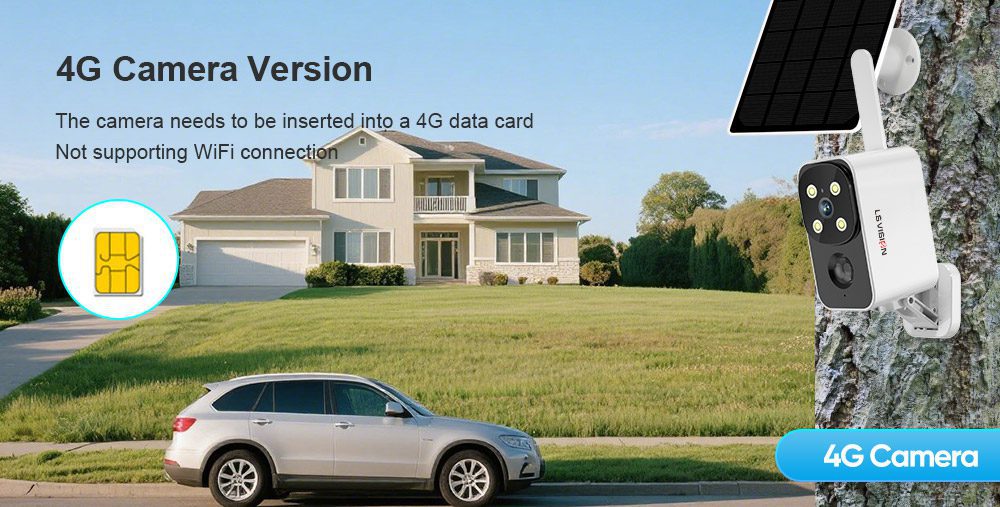

- 4G network remote viewing/playback via APP (UBox)

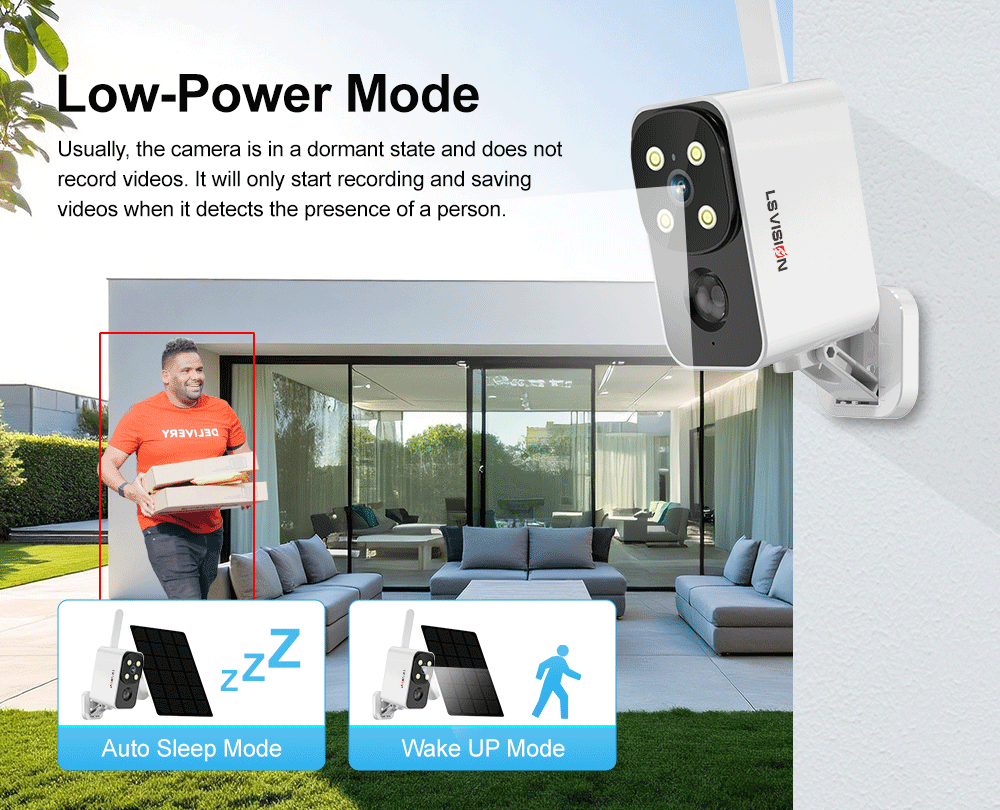

- Automatic video recording and message push when human body motion wakes up, PIR detection distance: within 10 meters
- Alarm deployment time can be set
- 4mm lens,built-in infrared light + white light, night vision full color or infrared mode optional, IR distance 15 meters

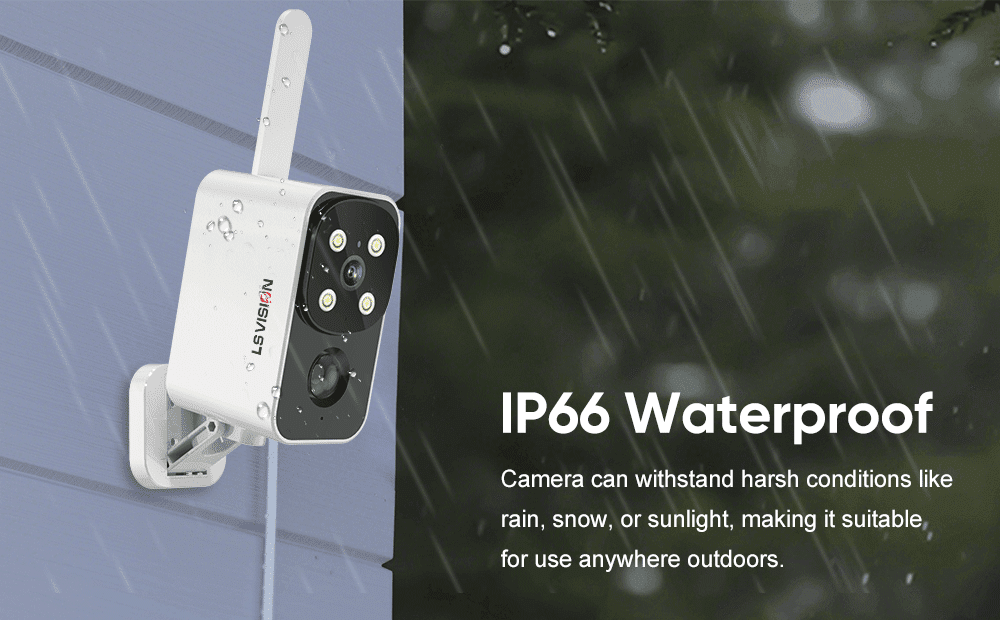

- Waterproof grade IP66
| Model No. | LS-BC3-4G | |
| General | Main processor | Ingenic-T31ZL |
| APP Operation System | Android, IOS | |
| Image Senor | 1/2.9″ Image Sensor | |
| Compression | H.264+/H.265 | |
| Resolution | 2304*1296 3MP | |
| Internet Connection | 4G | TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD |
| 4G Version | CN/ AU/ EU/ JP/ US/ ASEAN (Optional) | |
| Alarm | Detection Mode | PIR + Radar dual detection |
| Detection Distance | 0~10M | |
| Detect Angle | 95° | |
| Alarm Mode | Realtime calling or push message | |
| PTZ | PTZ Angle | Horizontal 180 °electric rotation, Vertica 100° manual rotation |
| Speed | Horizontal 40 °/S | |
| Night Vision | Full color night vision | 0.001 Lux |
| IR LED | infrared LED 15M IR distance | |
| White light LED | white light LED 15M distance | |
| Audio | Built-in speaker (input) | 3W |
| Built-in microphone (output) | voice monitoring distance 20M | |
| Lens | Lens | 4mm |
| Lens Angle | 95° | |
| Storage | Cloud Storage | storage when alarm recording |
| Local Storage | TF Card Max 256G | |
| Power | Power Supply Mode | Solar Panel+ Build in Batteries |
| Panel Material | monocrystalline silicon | |
| Solar Energy Power | 3.5W | |
| Battery Capacity | Build in 2pcs 21700 battery ( 9000mAh ) | |
| Operating power consumption | 3W | |
| Standby consumption | 0.003W | |
| Extension cord | 3M | |

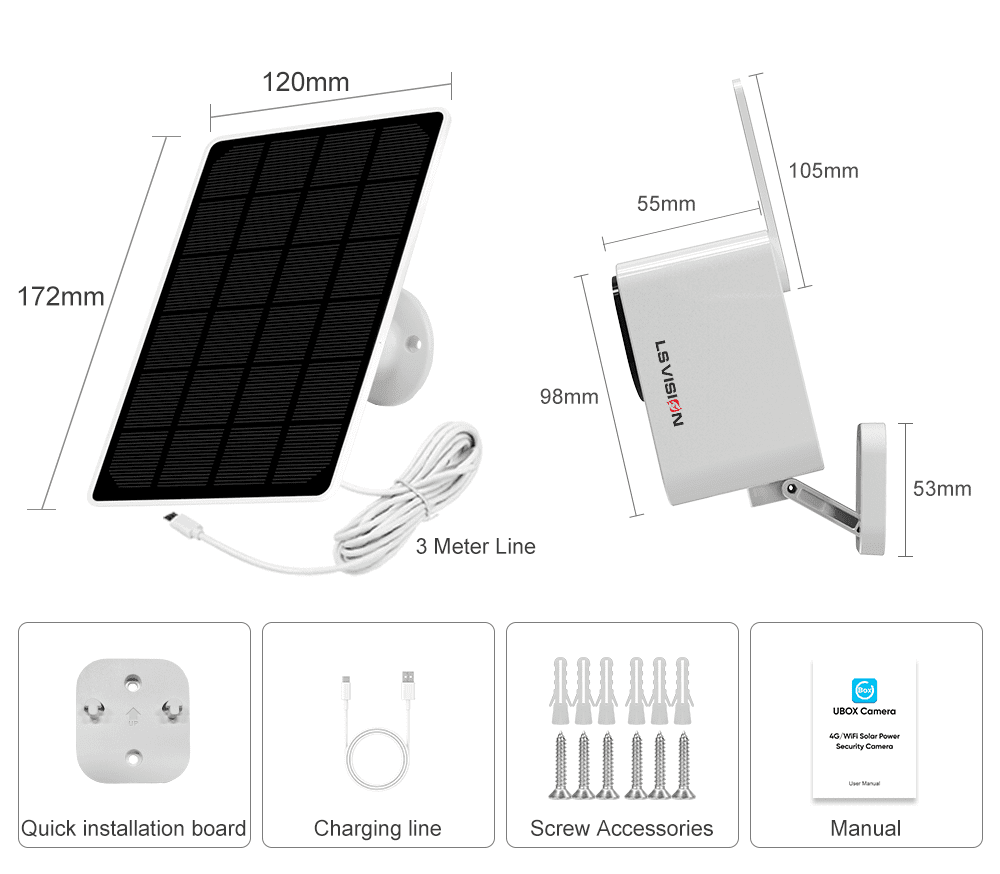

| Solar panel size | 170*115mm | |
| Others | Working Environment | Indoor&outdoor |
| Operation Temperature | -30°~+60° | |
| Humidity | 0%~90%RH | |
| Package | N.W. | 0.7KG/PCS |
| Giftbox size | 175X130x89mm | |
| Quantity in carton | 18pcs | |
| G.W. | 13.6KG | |
| Carton size | 415X368X290mm | |
