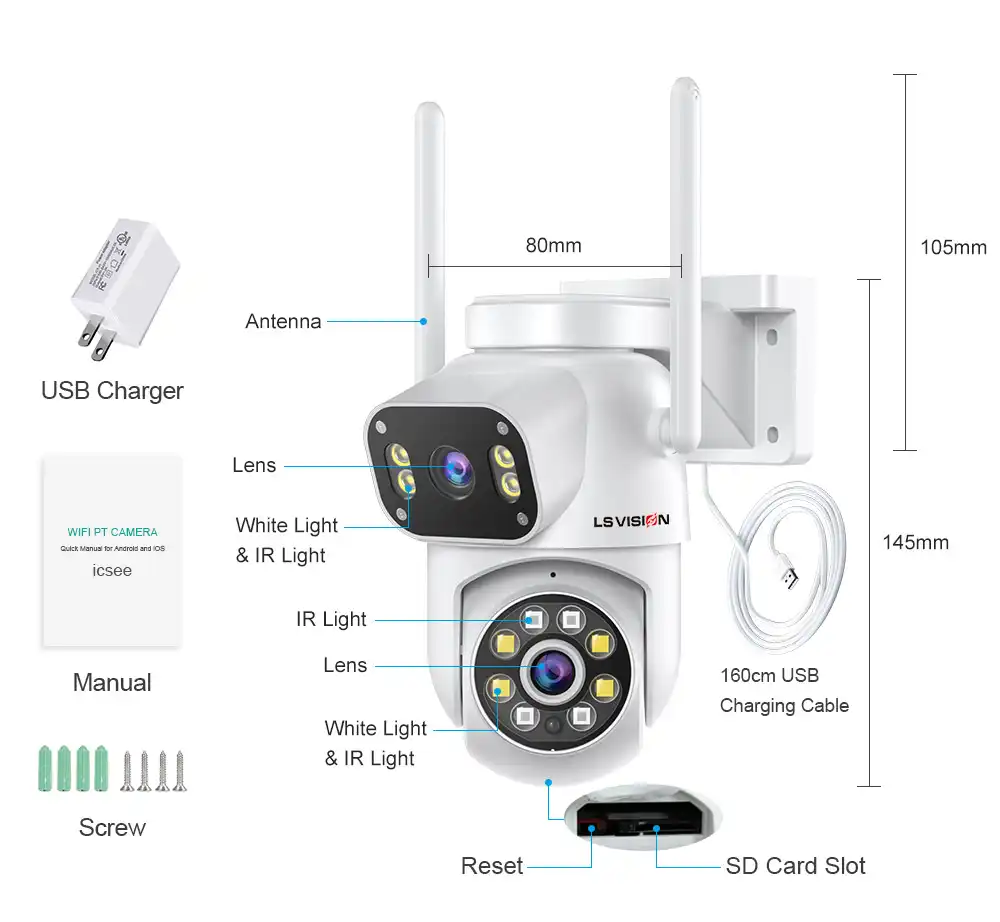

LS VISION LS-WL243 2K Affordable ONVIF PTZ NVR Camera with VMS Management
LS VISION,a trusted NVR camera manufacturer with 15 years of experience in the security industry.
Easily integrates with ONVIF PTZ cameras and supports PC-based VMS for centralized management.
A high-performance NVR camera offering great features at an affordable price.
Ideal for resellers and e-commerce businesses with seamless one-click shipping options.
| Weight | 0.42 kg |
|---|---|
| Dimensions | 18.0 × 13.5 × 11.1 cm |
Key Features：
- 1.5 inch 4MP HD dual-lens PTZ camera;
- Dual-lens dual-screen, bullet and dome 360-degree surveillance;
- Dual light source design, built-in infrared light + white light, night vision infrared and night vision full color can be set;
- Pan&Tilt: horizontal 0~355 degrees, vertical 0~90 degrees;
- 2.4G WIFI for Internet access;
- Support TF card storage (Maximum 128G )and cloud storage;
- Two-way voice intercom, two-way video synchronous recording and playback
- Support humanoid detection, intelligent sound and light alarm, can customize the alarm sound；
- Support automatic tracking, preset point, preset point cruise function；
- Support the upper and lower screen linkage;
- Support ONVIF protocol and access NVR;
- Supports Bluetooth quick network configuration；
- Supports PC client preview（VMS）;
- Support Connects to Amazon Alexa ;
- Support Android/IOS APP remote management
- power supply DC 5V.
| Model | LS-WL243 | |
| General | Minimum illuminance | 5Lux @(F1.4,AGC ON) ,0 Lux with IR； |
| Shutter | Shutter adaptation | |
| Lens | 3.6mm+3.6mm | |
| PTZ | Horizontal 0 ° – 355 °, vertical 0 ° – 100 ° | |
| Day night conversion mode | Automatic, ICR infrared filter | |
| Infrared irradiation distance | 30m (depending on the environment) | |
| Digital noise reduction | 2D / 3D digital noise reduction | |
| Wide dynamic range | Digital wide dynamic | |
| Video compression rate | Rate adaptation | |
| Audio compression standard | G.711a | |
| Audio compression rate | Rate adaptation | |
| Audio operating mode | Simplex bidirectional | |
| Audio and video cloud storage | Two synchronous storage and synchronous look back | |
| Audio and video local storage | Micro SD, two-way synchronous storage, synchronous look back | |
| Real-time Preview | Two channels, synchronous preview, support two-way video linkage | |
| Image | Image size | HD:4MP SD:640×360 |
| Frame rate | 15 frames (day) / 12 frames (night) | |
| Image settings | Mirror / Flip | |
| Backlight compensation | / | |
| Network function | Intelligent alarm | Input: Humanoid detection / movement tracking / linkage light |
| One click configuration | Code scanning addition, hotspot AP configuration, manual addition | |
| Interface protocol | Cloud private protocol | |
| General function | Dual code stream, image, password protection | |
| Interface | Storage interface | Micro SD card (up to 128G) or cloud storage |
| Power interface | USB power interface | |
| Reset interface | Reset the slot key resets the slot | |
| Wired network port | / | |
| Wireless parameters | Wireless standard | 802.11b/g/n |
| Radio frequency | 2.4 GHz | |
| Channel bandwidth | Support 20MHz | |
| Cloud services | Cloud services | support |
| APP | ICSee (download from App Store) | |
| cloud storage | Customize the service as required | |
| General specifications | Operating temperature and humidity | -10℃~50℃，10%~90（RH） |
| Power supply | DC5V±10% | |
| Power waste | 6W Max | |
| Color box | 180*135*111mm, 0.42kg | |
| PCS/CTN | 40PCS/CTN:
560*380*590mm,17.5kg |
|
