LS VISION LS-WL580-20X – 4K Solar Powered Wireless Auto Tracking PTZ Camera for Job Sites
LS VISION is a trusted manufacturer with over 15 years of experience in wired surveillance camera systems.

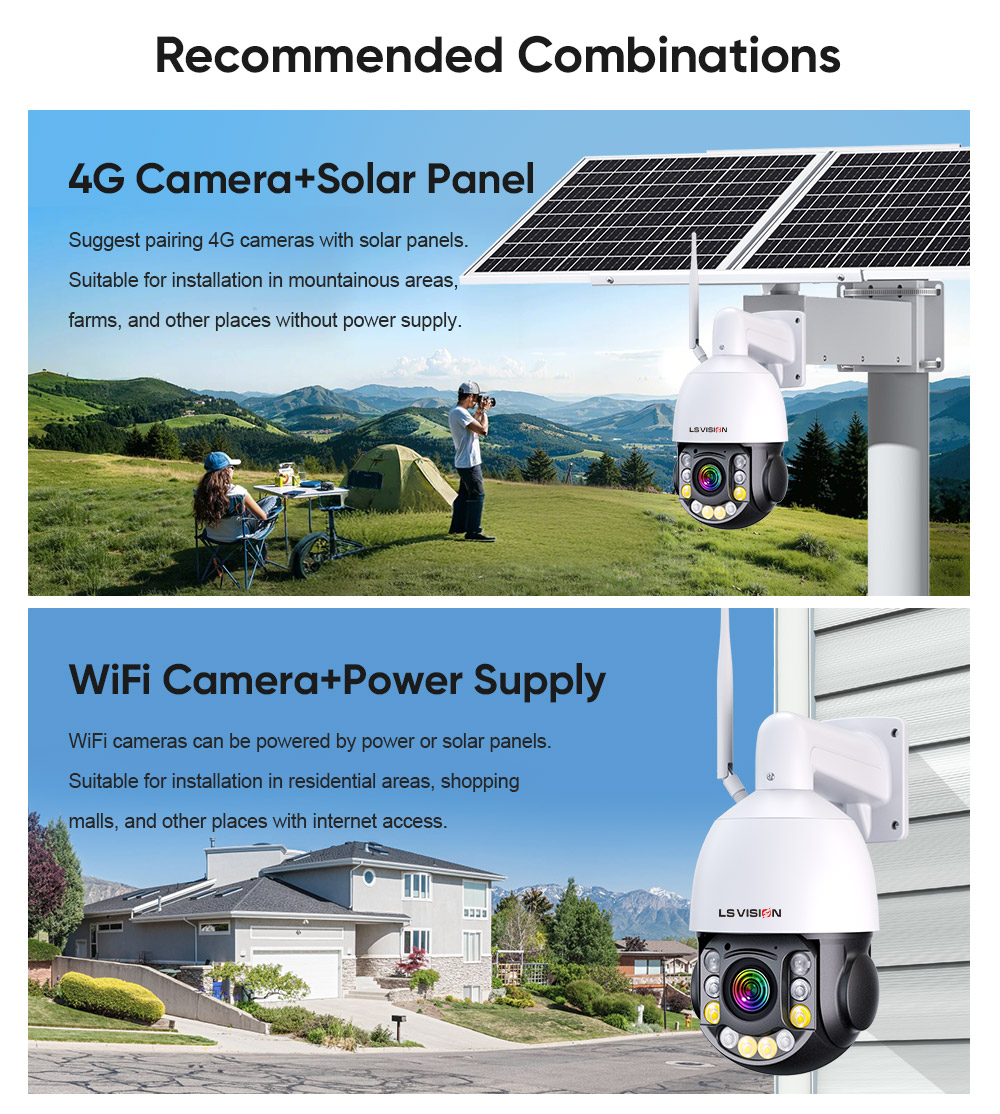

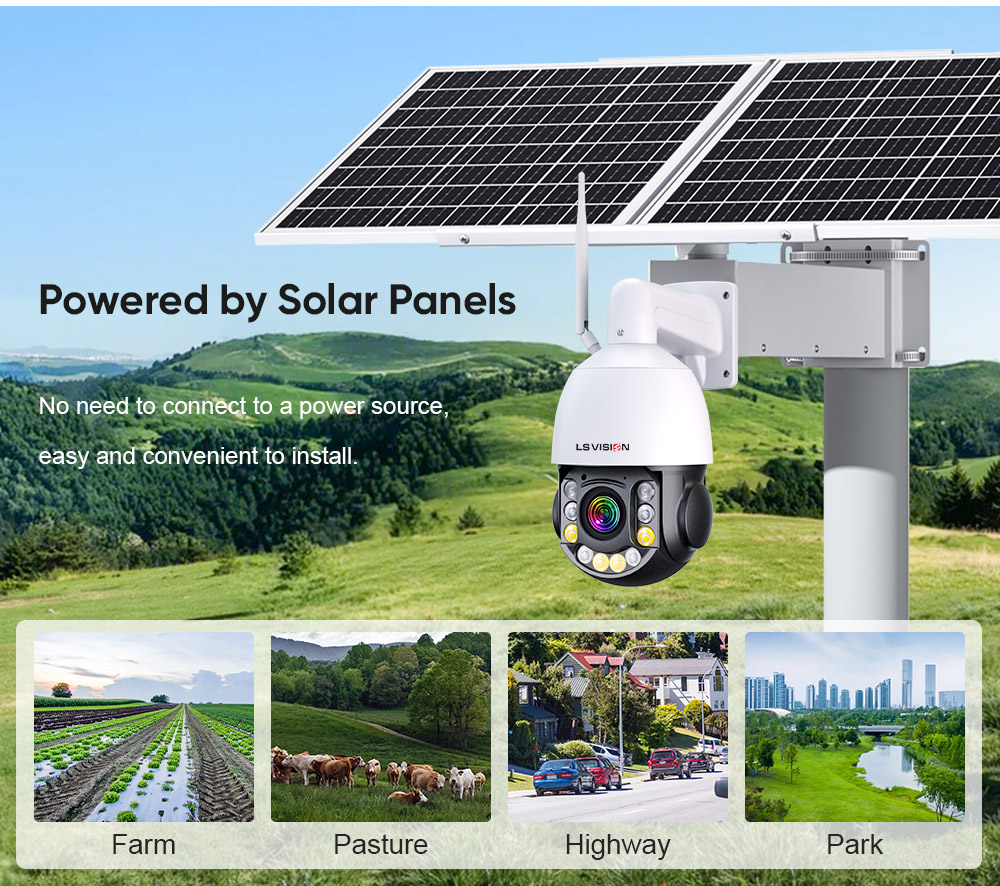

The 4K wireless camera is compatible with solar panels for 24/7 continuous operation.
The 360° auto-tracking PTZ camera supports ONVIF and NVR connections.
We offer OEM and ODM solutions for dealers and e-commerce clients.
| Weight | 1.85 kg |
|---|---|
| Dimensions | 19.5 × 18.5 × 25 cm |
Key Features:

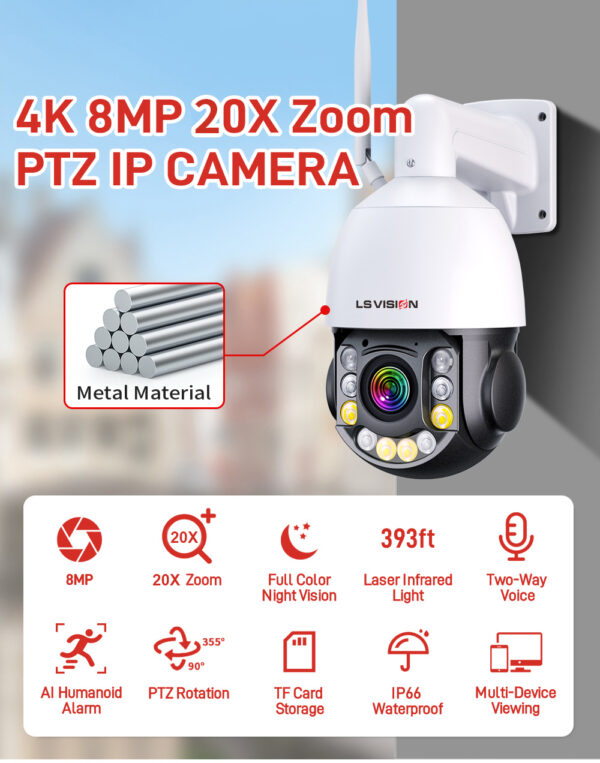

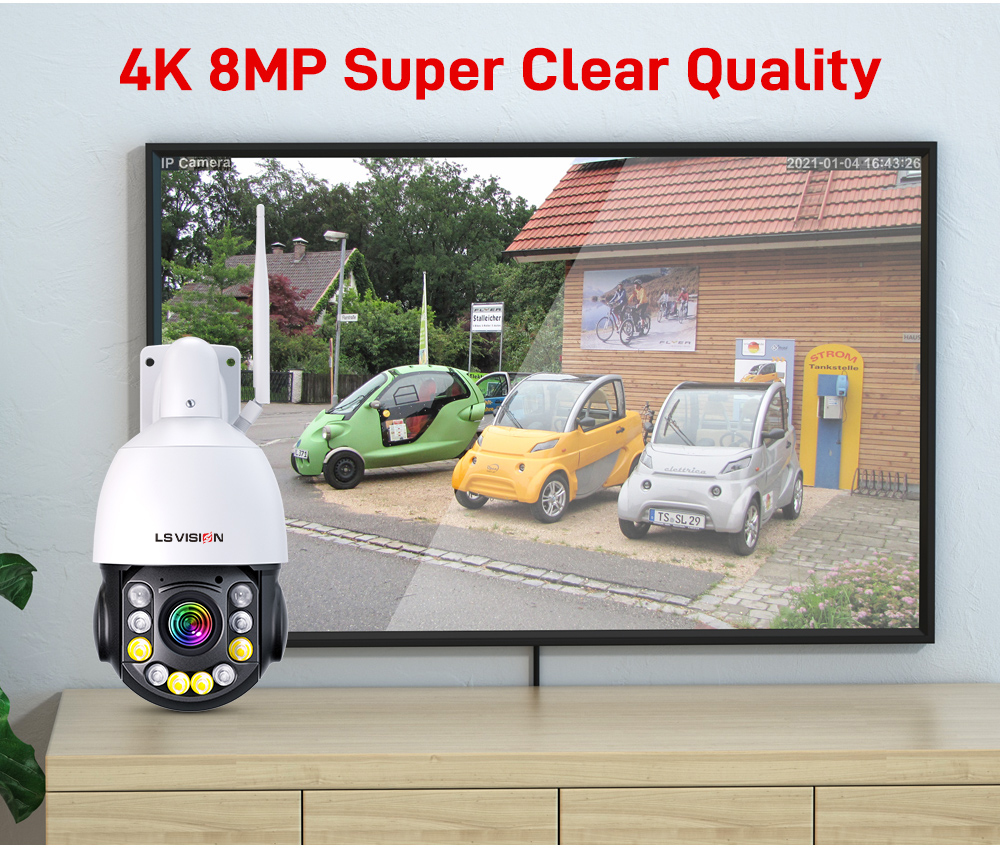

- 4.5 inch 8MP HD 4G PTZ camera;

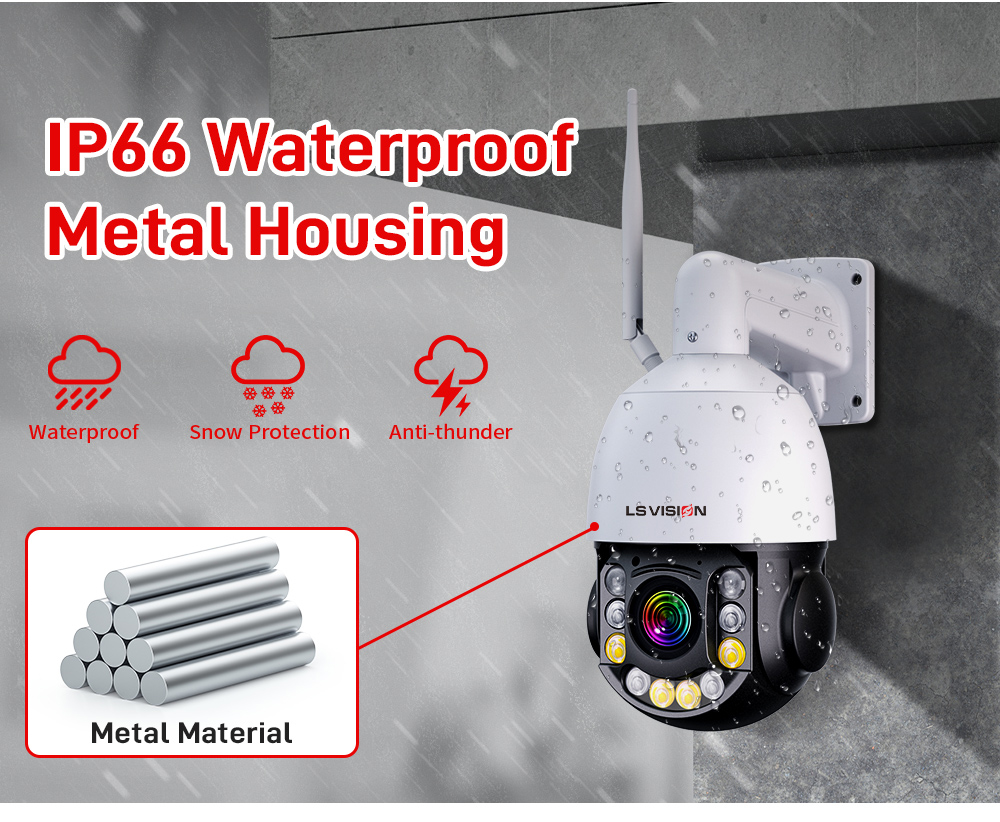

- metal+ plastic case, outdoor waterproof;

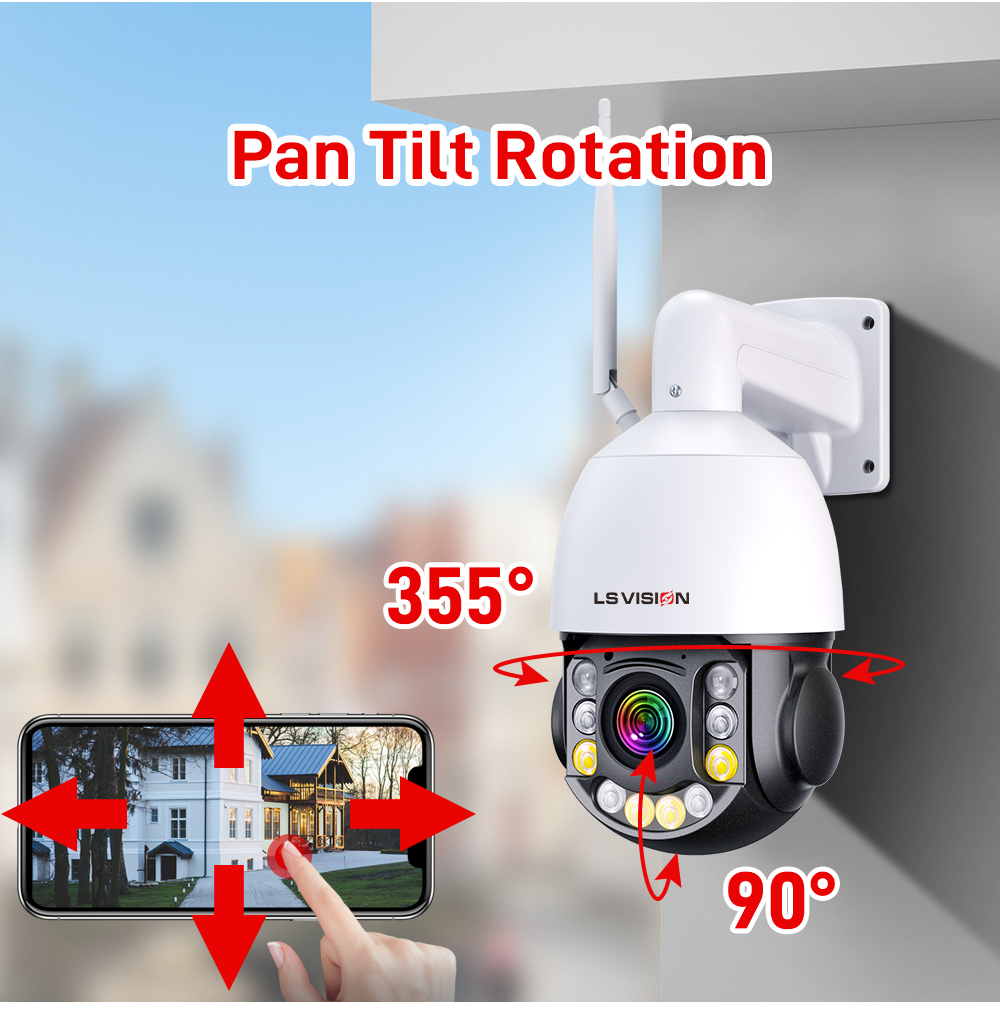

- Rotation Angle: 355 degrees horizontal, 90 degrees vertical, the highest speed of 60 degrees /S;
- 4G antenna/WIFI antenna, TF card storage, cloud storage, two-way voice intercom;

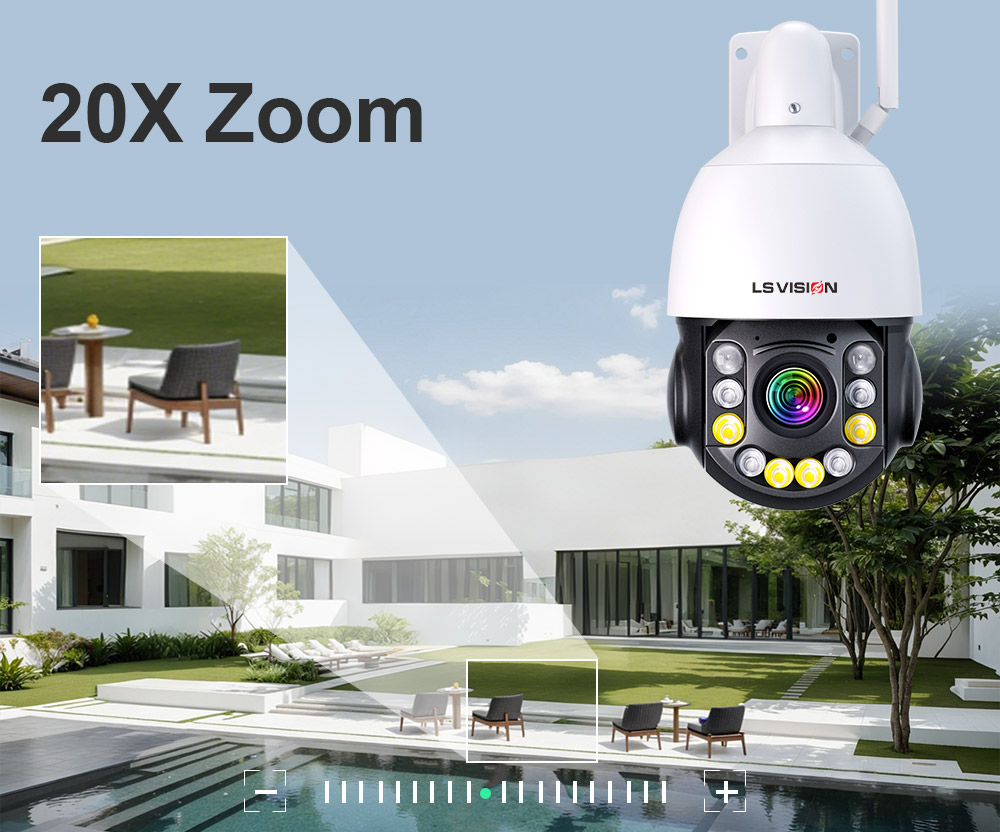

- 20X zoom lens, the maximum daytime viewing distance of 200-300 meters;

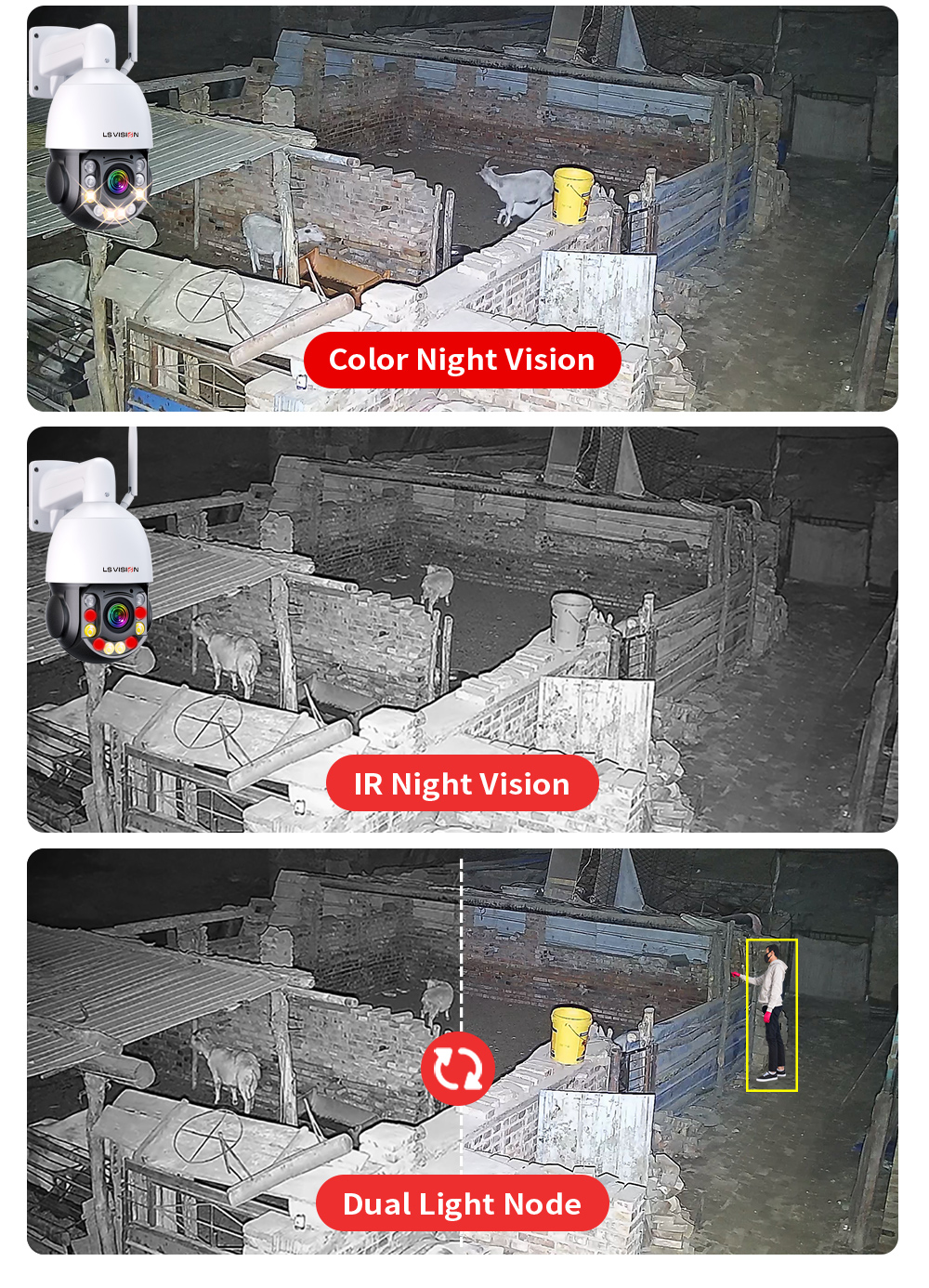

- Dual light source design, night vision full color 25 meters, night vision infrared 40 meters;
- Support humanoid detection, sound and light alarm, APP push, and custom alarm sound；
- Support humanoid tracking, and automatically zoom the lens in the tracking process;

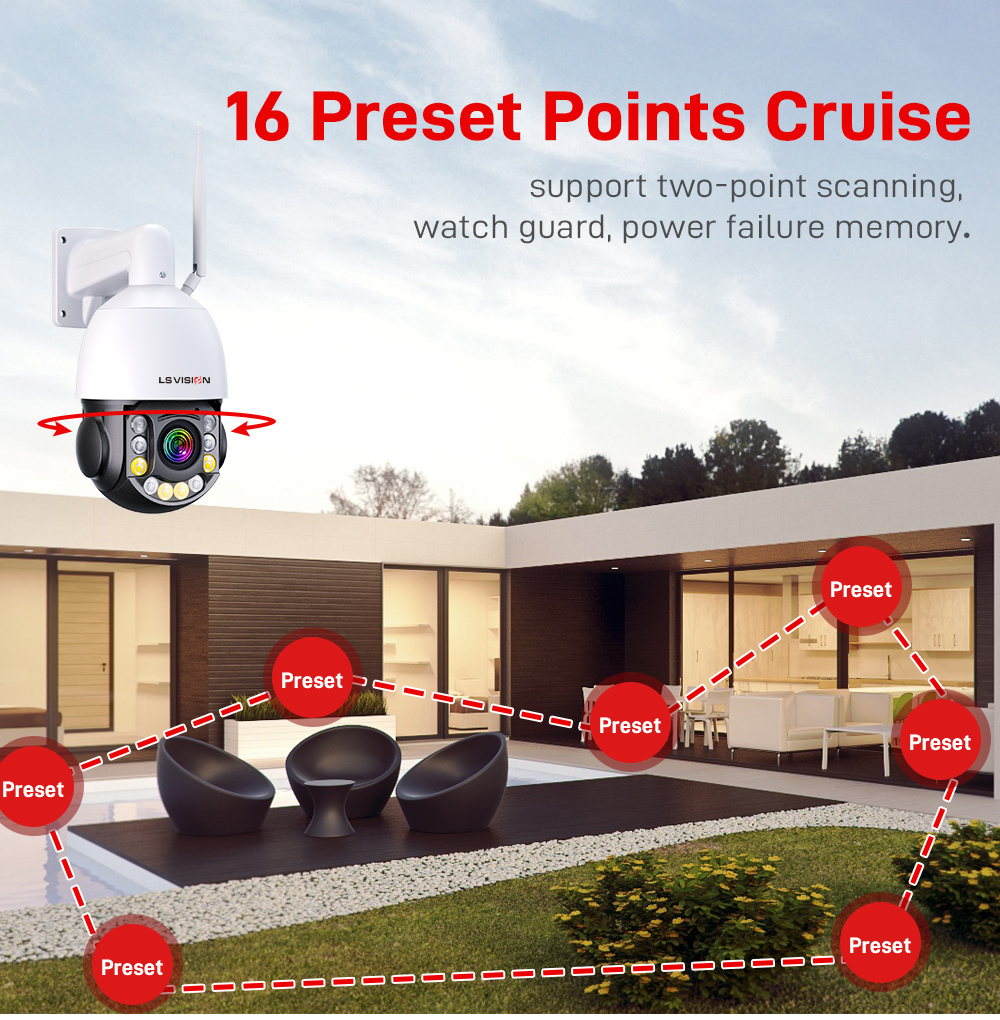

- Support preset points and cruise function;
- 4G version camera:Built-in 4G module, different modules in different countries;

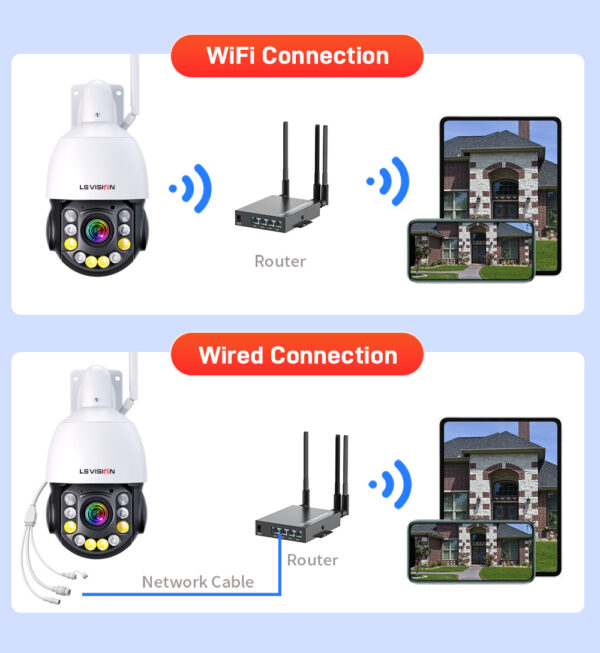

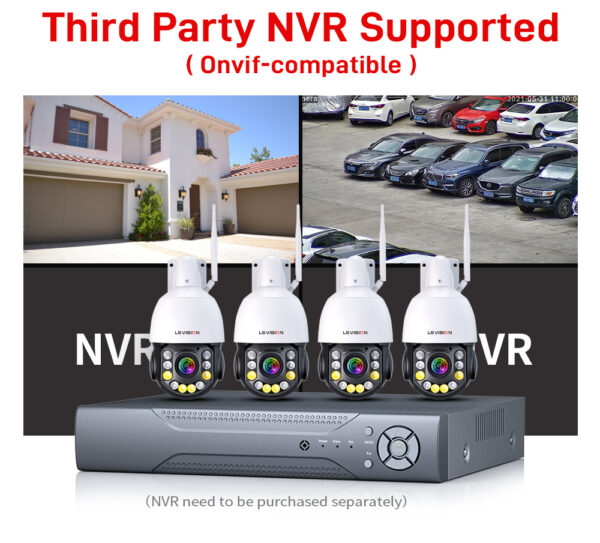

- WiFi version camera:Support 2.4G WIFI and RJ45 access network,Support ONVIF protocol and access NVR;
- Support Android/IOS APP and PC client management；
- power supply DC 12V；
Technical parameters：
| Model: | LS-WL580-20X | |
| Camera | Imaging sensor: | 1/2.7”CMOS |
| DSP: | NT98566 | |
| Signal system: | PAL / NTSC adjustable | |
| Scanning mode: | Progressive scanning | |
| Illumination: | Color 0.2 lux, black and white 0.02 lux, infrared lamp open after 0 lux | |
| LENS： | 20X zoom （2.8-12mm） | |
| Day and night switch: | IR-CUT dual optical filters auto switch in day and night | |
| Electronic shutter: | Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) | |
| White balance: | Auto / manual | |
| DNR: | 3D-DNR | |

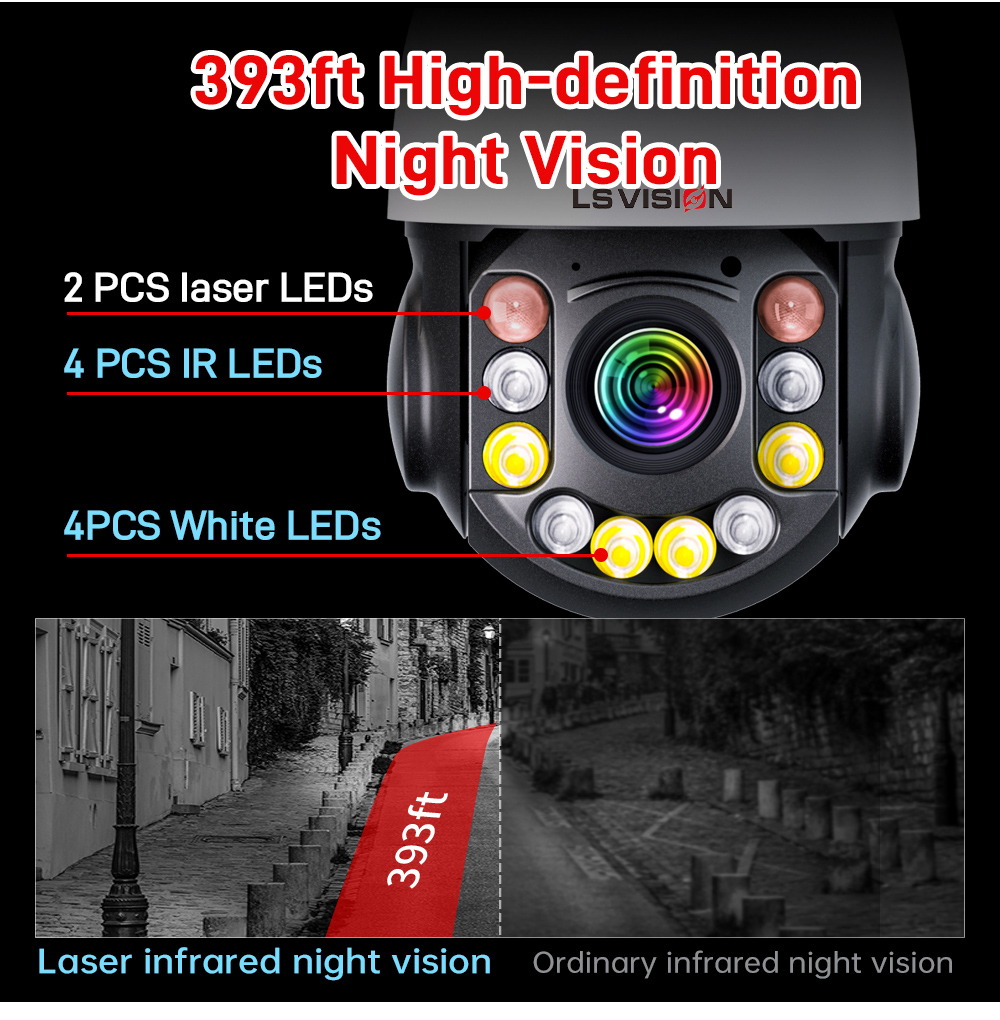

| IR source: | 2 pcs IR LED + 6 pcs white LED+2 laser LED | |
| Effective night vision distance: | night vision full color 25 meters, night vision infrared 40 meters | |
| Standard compression | Image compression: | H.265 |
| Video bit rate: | 128 Kbps — 6 Mbps; CBR / VBR adjustable | |
| Audio compression: | G.711 / G.726 | |
| Audio bit rate: | 64 Kbps (G.711) / 16 Kbps (G.726) | |
| Image | Frame rate: | ,3840*2160@12fps |
| Image adjustment: | Through IE can adjust Saturation, brightness, contrast, sharpness | |
| mirroring:ring: | Horizontal mirroring, vertical mirroring | |
| Scene: | Auto, indoor, outdoor | |
| Digital enlarge: | through NVR, P2P monitoring management software | |
|
PTZ parameter |
Preset point | presets, positioning precision |
| Cruise lines | Article 3 the cruise line, tour when shipping preset a residence time is adjustable | |
| scanning | automatic scanning, scanning speed is adjustable, manual speed is adjustable | |
| other | Power off memory, the guards | |
| Storage: | Support TF card storage max128G | |
| Function | Interface protocol: | ONVIF |
| Support protocol: | TCP / IP，onvif | |
| Intelligent alarm: | Motion detection, humanoid detection, sound and light alarm, smart push, preset points and cruise function | |
| Audio : | Built-in microphone and speaker | |
| Wireless : | Support 2.4G wifi | |
| Interface | Communication interface: | 1pc RJ45 10M / 100M Adaptive Ethernet port |
| Power input: | DC 12V±10% | |
| Basic parameter | Power consumption: | 4.8W / 12W (IR on) |
| Work environment: | -30℃ ~ 60℃, humidity is less than 95% (no condensation) | |
| installation | Wall mounting and lifting | |
| 1PCS Size | 195*185*250mm 1.85kg | |
| 6PCS/CTN Size | 476*272*472mm 11.6kg | |
If there are any changes, will not notice additionally
