LS-WB521 Home battery camera

Application scenarios:

LS-WB521 Home battery camera,Features no wiring, built-in lithium battery, battery life up to 180 days, suitable for home, retail stores, and office video surveillance.

1.Lighting for infrared night vision (with a night vision distance of 7m); 24h around-the-clock monitoring; IR-CUT switching; free of color cast in the daytime; clearer night vision

2.The built-in rechargeable lithium battery with long battery life functions for up to 6 months under normal circumstances and can stand by for 12 months

3.2.4G Wi-Fi supported (IEEE802.11b/g/n)

4.Cloud storage, Micro SD card (up to 128GB) and mobile phone video recording supported

5.Supporting human contour detection, activity zone,  intelligent push and pet snapshot

Weight 0.57 kg
Dimensions 7.21 × 6.33 × 9.74 cm

White with high gloss

Dustproof and waterproof



Main characteristics:

1.1080P Battery WiFi Camera

2.2-megapixel high resolution (1920X1080) for clear picture quality

3.Clear and smooth video browsing; intelligent transmission giving full play to capabilities of the network

4.Online firmware upgrade, and synchronous updating of the functions and experience

5. Standard H.265 video compression algorithm enabling the transmission of high-definition videos in networks with narrow bandwidth; local high-definition videos with high image quality and low stream supporting smoother presentation without ghosting

6.Two-way voice intercom supported; echo eliminated; noise suppressed

Weight 0.57 kg
Dimensions 7.21 × 6.33 × 9.74 cm

White with high gloss

Dustproof and waterproof



LS-WB521 Specifications
Master Processor SOC HI3518E V300: A dominant frequency of 900 MHz
DDR 512M
Image Sensor Sensor 1/3″ color CMOS Sensor
Lens M12, f: 3.3mm, F2.0, 2-megapixel
Visual angle H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
Minimum Illumination 0.01 Lux
Audio Input/Output Two-way voice intercom available (built-in Microphone and speaker)
Audio Compressing Method AAC
Video Video Compressing Method H.265
Lighting Frequency 50Hz, 60Hz
Image Frame Rate 15 fps
Maximum Image Resolution 1920*1080P
Light Source for Night Vision IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 7M
Network Wireless Network 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols Supported TCP/IP, UDP/IP, DHCP, RTMP, MUTP
IP Address Supported Dynamic IP address supported
AI Intelligent Features Human contour detection, activity zone,intelligent push,  pet snapshot
Alarm Notification Alarm Methods Alarm push by mobile APP,  alarm sound
Wake-up Wake-up Method PIR body induction wake-up, and remote positive wake-up
Video Recording Recording Method Alarm triggered recording, and manual recording
Video Storage Cloud storage, local Micro SD card, and mobile phone memory
Indicator Lamps LED Indicator RGB tri-color lamp indicating the status of power/network signal/functionality
Battery Capacity 9600mAh
Removability Unremovable
Battery Life 7 months (provided that 20 10s videos are recorded per day)
Standby Time 1 year
Charging Voltage DV 5V+-5%/1.5A
Charge Time Within 8 hours
Protection Method over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures
Power Consumption Standby Power Consumption 1.68mW(4V 0.42mA)
Power Consumption of Daytime Operation 1W((3.8V 264mA)
Power Consumption of Operation at Night 2.17W((3.8V 571mA)
Interfaces Power Supply 1 Micro USB interface
SD Card 1 Micro SD card (up to 128GB supported)
Keys 1 reboot key and 1 on/off key

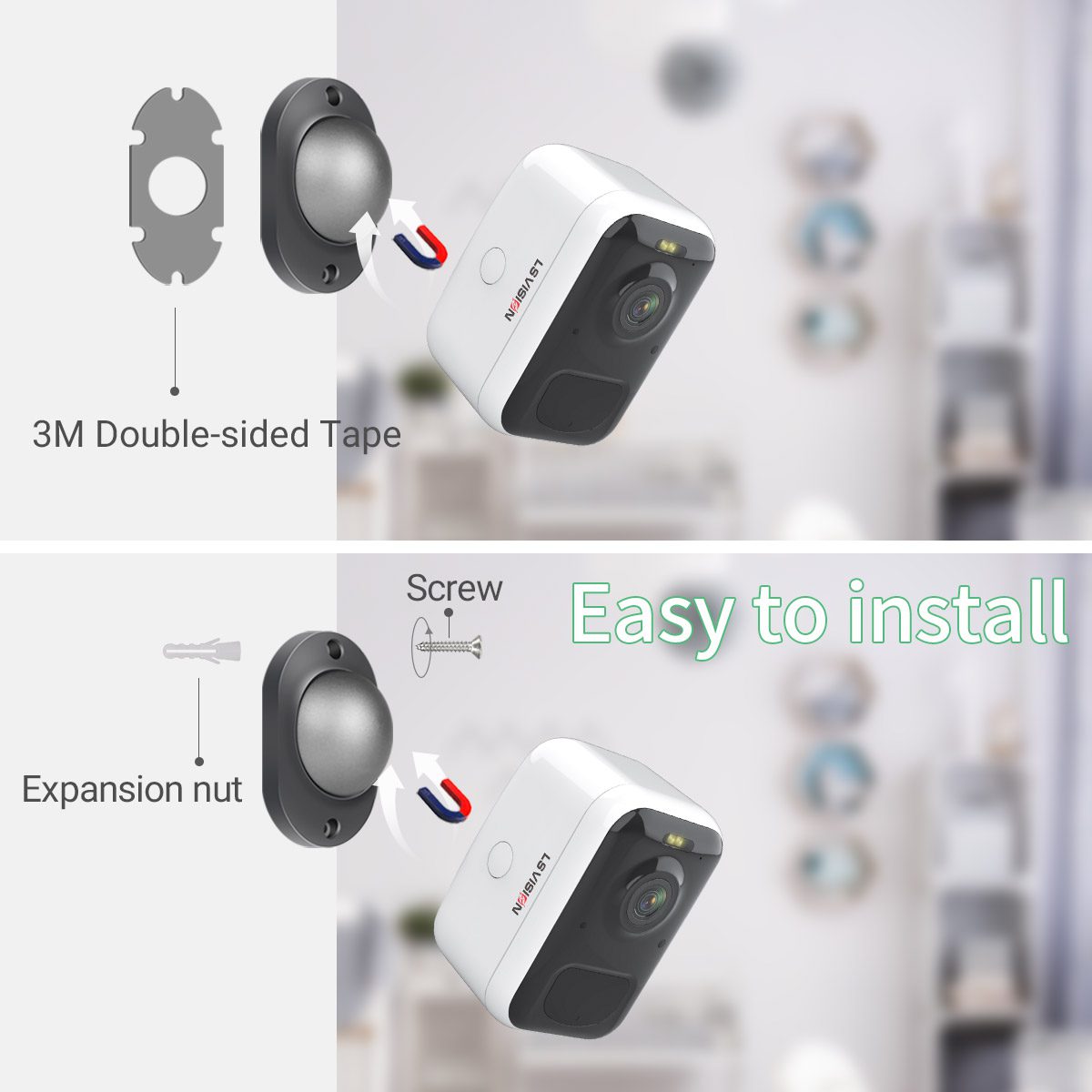

Installation Method Installation Method Magnet and 1/4 universal screw holes
Environment Dustproof and waterproof PI65
Operating Environment -10° ~ 45°C  /10% ~ 80%  (no condensation)
Storage Environment -20°C ~ 60°  /0% ~ 90% (no condensation)
Specifications Size (LxWxH) 72.1mm×63.3mm×97.4mm (with bracket excluded)
Net Weight of Bare Machine Approx. 350g
Finished weight Approx. 570g
Material + Process ABS
Color White with high gloss


LS-WB520 Specification

LS-WB520 Operation manual
